  View:Shaker
  Orbital Shaker.  |    Others Shaker  |    Thermo-shaker  |

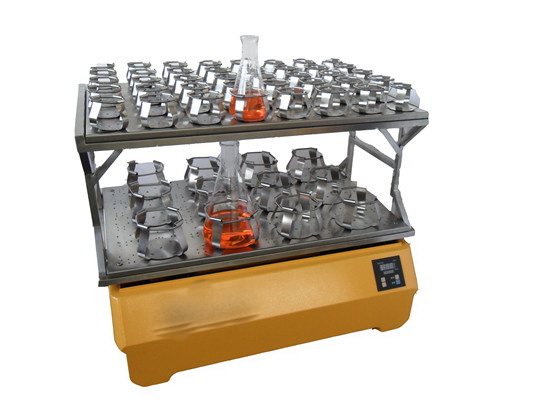

Tree Units Shakers ZC-C

characteristics:

1、Stack up to three units high, Space-saving and high-capacity.

2、Streamlined shape , black-and-gold backing finish outer cover and stainless interior chamber with rounded corners that clean easily and prevent the bacteria breeding.

3、Glides up door and slide-out platform provide easy access to all samples. Built-In water reservoir protect unit from spills which also make an easy way to clean up broken flasks.

4、Insulating and tempered glass doorprovides good view of incubating state without opening lids.

5、Unique inner-outer circulation vent design guarantee the high homogeneity of temperature which is ±0.3℃.

6、Special designed air vent satisfy the oxygen need of sample.

7、High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

8、Microprocessor control to precisely regulate running time, temperature and speed.

9、Large backlighting LCD display that making parameters setting and viewing easily.

10、Programmable shaking periods from 0 hr. to 999.9 hrs.

11、Infrared heater that heat up fast, low watt-density.

12、Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.

13、Brushless AC induction motor provides years of long life.

14、Laser speed measuring equipment provides precise real speeds.

15、Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation. Open-Door Cutout Switch stops agitation when chamber is open providing a more favorable work environment.

16、Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

17、Upgradeable to CO2 incubated shaker.



Specifications:

Product Name

Three Units High-Precision Staked Incubator Shakers

Model

ZC-3

Shaking Range

40-300rpm

Shaking Control

±1rpm

Orbit

Ф26mm

Temp. Range

4℃~60℃

Temp. Accuracy

±0.1℃

Temp. Uniformity

±0.3℃

Display

LCD

Air circulation

Forced air circulation

Parameter Control

P.I.D Microprocessor

Max. Capacity

3 platforms, single 250ml×40or 500ml×24 or 1000ml×15 or 2000ml×8

Timer Range

0-999.9 hrs.

Platform Size

3 platforms, single 695×430mm

(L×W)

Standard Platform

Universal Platform(Dedicated Platform optional)

Power Source

AC220±10%        50~60Hz

Overall Dimensions

900cm×912cm×1708cm

(L×W×H)

Weight

520KG
